MS-401 Series Metric Dial Plunger Indicator 25mm Travel
£35.02 INC VAT
| Range | 0-25mm |
|---|---|
| Accuracy | +/-0.03mm |
| Resolution | 0.01mm |
| Measurement Units | Metric |
| Display Type | Dial |
| Data Output | No |

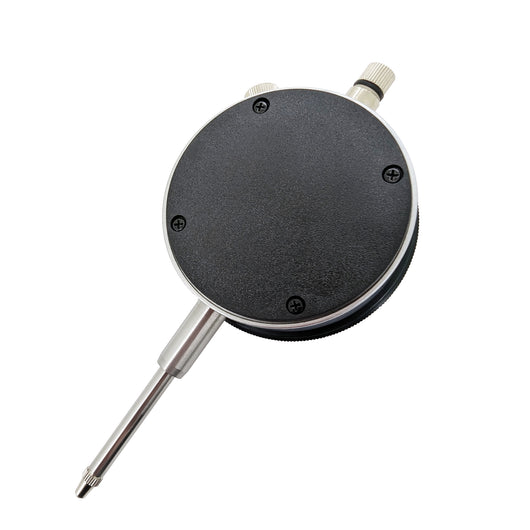

The MS-401-025 Dial Indicator is a precision metric tool with a 25mm range and 0.01mm resolution, ideal for engineering and inspection tasks. It features an 8mm mounting stem and compact flat back, with optional lug backs available. Ensuing reliable, consistent measurements, this gauge is perfect for workshop and metrology use where accuracy and durability are essential.
Product Benefits
- 25mm measuring range: with 0.01mm resolution for precise metric readings.

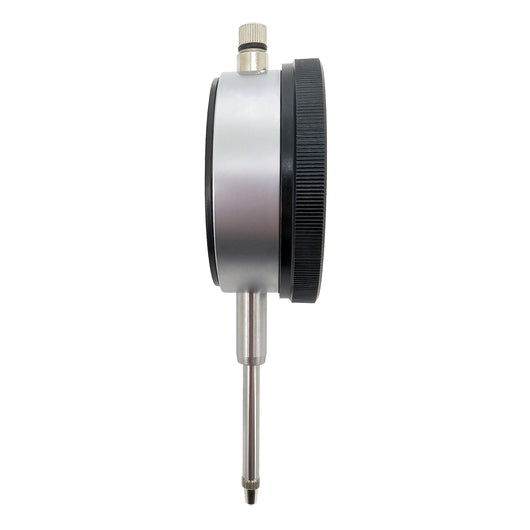

- 8mm diameter stem: Standard size for secure mounting in holders, stands or fixtures.

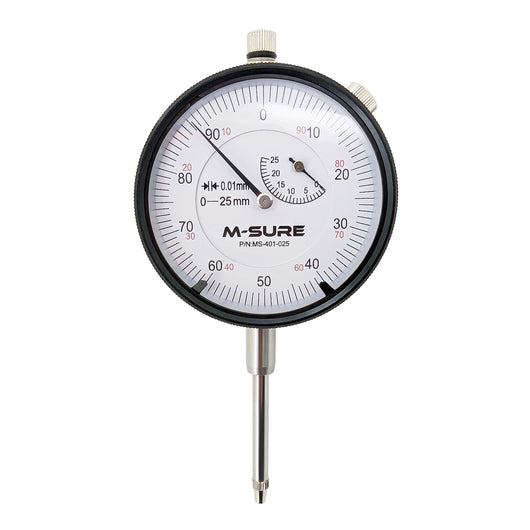

- Large 60mm dial: Features a multi-revolution dial with two hands: a primary indicator and a smaller revolution counter for reading full rotations.
- Continuous dial graduations: Clear, easy-to-read scale with numbers increasing around the dial for straightforward measurement reading.
- Optional Lug Back: Available separately to provide an alternative mounting solution, offering greater install configurations.
- Adjustable limit markers: Easily set upper and lower tolerance limit hands to serve as a visual “go/no-go” gauge, ideal for quick, repetitive measurement tasks.
- Bezel rotation lock: The locking screw securely holds the dial in position once zeroed, preventing accidental movement during use.
- Interchangeable Contact Point: Easily replace the contact point by unscrewing and fitting an alternative with an M2.5 x 0.45mm thread. Contacts are available separately.

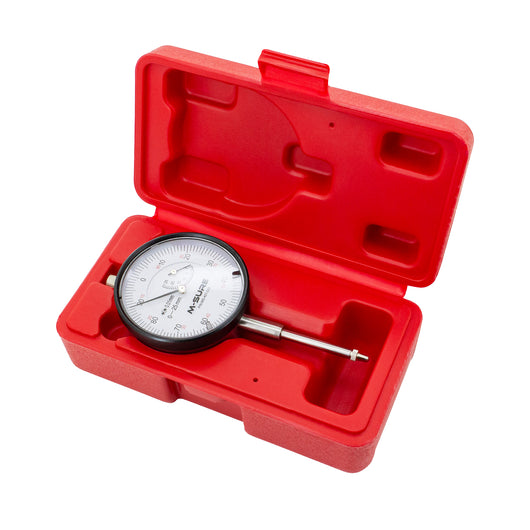

- Hard storage case: Provides durable protection for the dial indicator during transport and storage, helping prevent damage and maintain accuracy.
Application
Dial gauges are versatile precision instruments widely used in industrial and engineering applications. They are essential for measuring small linear distances and detecting variations in height, flatness, or roundness. Commonly used in machining, tool setup, and quality control, dial gauges help ensure components meet strict tolerances. They are ideal for checking alignment, runout, and deflection in rotating parts, and verifying surface consistency during inspection. Dial gauges provide reliable readings for both static and dynamic measurements, including deflection, displacement and movement.
What's Included
- MS-401-025 gauge
- Storage case
- Link to downloadable manual
Product Specifications
| Specification | Details |
|---|---|
| Accuracy e mpe | +/-0.03mm |
| Contact point thread | M2.5x0.45 |
| Data output | No |
| Dial scale type | Continuous |
| Display type | Dial |
| Indicator stem diameter | 8mm |
| Lug back | Flat Back |
| Measurement range | 0-25mm |
| Measurement units | Metric |
| Mpn | MS-401-025 |
| Product series | Series 401 - Dial Indicators |
| Product sub type | Plunger |
| Resolution | 0.01mm |
