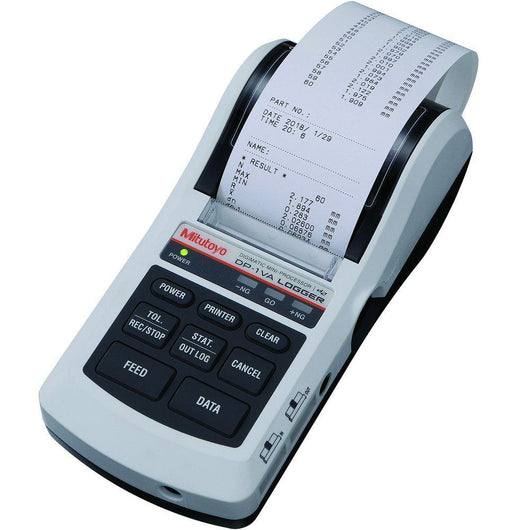

Mitutoyo Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
£434.70 INC VAT
- Digimatic 2 support. 8 digits output for data printing and analysis even from high resolution or long stroke instrument

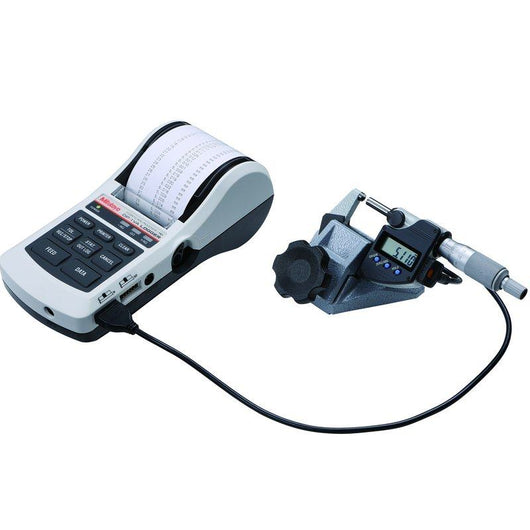

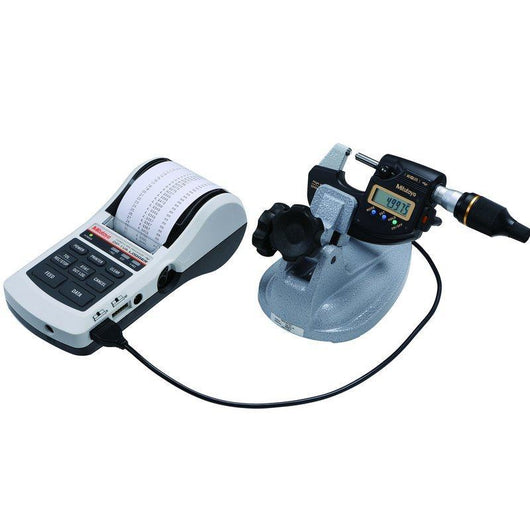

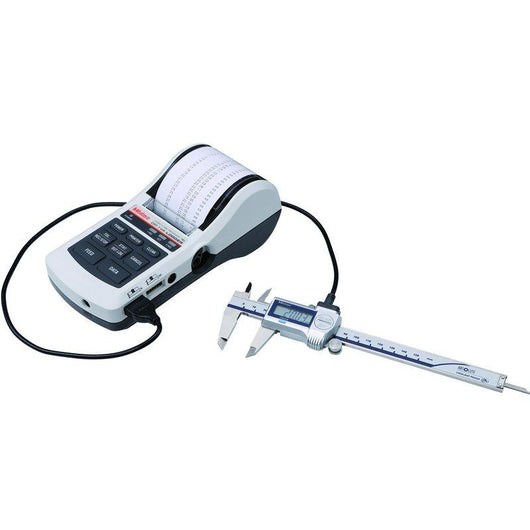

- Statistical evaluations, and data printout from calipers, micrometers and other measuring devices equipped with a Digimatic port.
- Low noise level
- Durable, chemical-resistant thermosensitive paper
- Continues to log measurements even when powered of
This DP-1VA printer allows you to print measuring data, statistical evaluations a.s.o.
- Excellent printing speed, prints upon one-touch start and at low noise level. The thermosensitive paper has outstanding durability and chemical resistance for long-term storage.
- Timer function for timed measurement data loading
- Easy data transfer from printer to PC. USB (VCP/HID) output for PC (USB IT-PAK Vers. 2.1 or later, MeasurLink, Excel a.s.o.)
- Data Logger Function. Saves up to 1000 data records with time and date. Data can be saved even after the power is turned off.
Key Specifications
Remarks: Digimatic Mini Processor DP-1VA
Mass_ 390 g
Data input: Digimatic, Digimatic 2, RS-232C Input (KA-Counter only)
Printer type: Thermal line printer
Printer speed: 6.5 mm/s (using AC adapter)
Printer line number: 7000 lines/roll (with large font) 10000 lines/roll (with normal font)
Printer paper: Width: 58 mm, length: 48 m
Processing capacity: Mode 0: 100000 data entries Mode 1/2: 9999 data entries Mode 3: sample size 10x subgroup 9999 = total number of data entries 99990
Logging of the measurement data (to store): Max. 1000 points
Data output: USB, RS-232C at TTL level, tolerance judgment result (-NG, GO, +NG)
Power supply: AC adapter 6V, battery: LR6 x 4 (alkaline) or AA x 4 Ni-MH (rechargeable, battery is not charged in the device)
Delivered: With AC adapter, printer paper (1 roll), strap
Battery life: Appr. 10000 lines (with 1600 mA Ni-MH and print 1 time/5 s)
Timer function: 0.25 s; 1 s; 5 s; 30 s; 1 min; 30 min; 60 min (0.25 s only statistical function)
Printable data: Measurement data, GO/±NO GO judgement, number of data, maximum/minimum value, range, average, standard deviation, number of defective, fraction defective, process capability, index, histogram, D-chart, control chart, generation for Xd-bar and control limit data, date and time
Product Contains
Mitutoyo Series 264 DP-1VA LOGGER Data Mini-Processor & Printer
Brand Information
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
Product Specifications
| Specification | Details |
|---|---|
| Mpn | 264-505E |
| Product sub type | Data Management |
