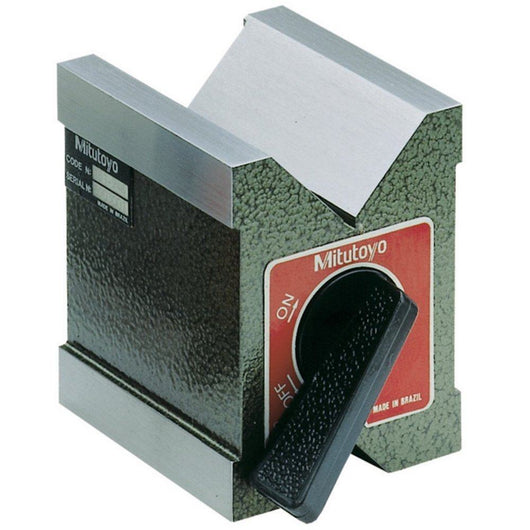

Mitutoyo Magnetic V-Block 95 x 70 x 98mm D=50.8mm 181-246
£573.60 INC VAT
Checkout with
- Contact faces are ground and lapped.
- They are of regular length with two differently sized, 90° V-grooves.
This Magnetic V-Blocks are a regular-length type and offer you the following benefits:
- You can use them for holding ferromagnetic cylindrical parts for scribing, adjusting, testing, etc.
Key Specifications
Length [mm]: 98
Width: 70 mm
Max. receiver for workpiece V-groove 1 Ø: 50.8
Max. receiver for workpiece V-groove 2 Ø: 25.4
Magnetic force: 980 N
Height: 95 mm
Mass_ 4 kg
Parallelism between V-groove and all side surfaces: 10 µm
Perpendicularity between V-grooves and back surface:
181-246 21 µm
181-947 21 µm
181-946 11 µm
Difference of the height of the pair: 10 μm
Symmetry of the V-grooves: 10 µm
Delivered:
In pairs (181-946 and 181-947)
Individually (181-246)
Inch-Metric: Metric
Brand Information
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
