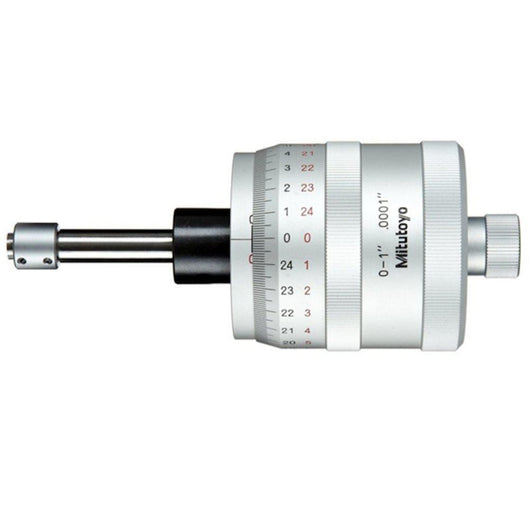

Mitutoyo Head XY-Stage Thimble 49mm 0-1" X-Axis 152-392

We’re sorry, but this product has been discontinued. Please see above for similar or newer versions, or feel free to contact us for further assistance.

Contact Us

Description
  • Micrometer heads especially designed for accurate cross-travel stage translation in X and Y axes.
  • Spindle end: Flat form and hardened, or spherical with carbide tip (more than HRA90), lapped surface.

This XY Stage type micrometer head lets you read measurement values easily.

They offer the following benefits:

  • Micrometer heads especially designed for accurate cross-travel stage translation in X and Y axes.
  • Spindle end: Flat form and hardened, or spherical with carbide tip (more than HRA90), lapped surface.



Key Specifications

Range: 0 - 1"

Maximum Permissible Error J MPE: ±0,0001"

Spindle end: Flat

Spindle pitch: 1 mm

Mass_ 270 g

Measuring face: Hardened steel (>60HRC)

Digital/Analog_ Analog

Inch-Metric: Inch

Graduation: 0.0001"
