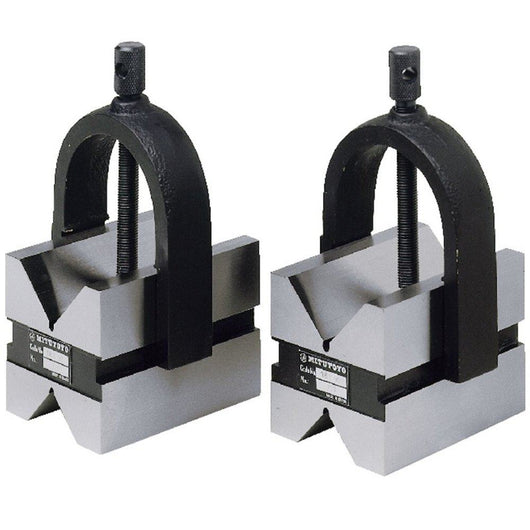

Mitutoyo Hardened Steel V-Block 2 pieces 31.8 x 31.8 x 41mm D=25mm 181-902-10

• There are two V-blocks per set.
• The feature V-angle 90° clamping brackets.

These Hardened Steel V-Blocks have clamp brackets and offer you the following benefits:

• Contact faces are ground and lapped.

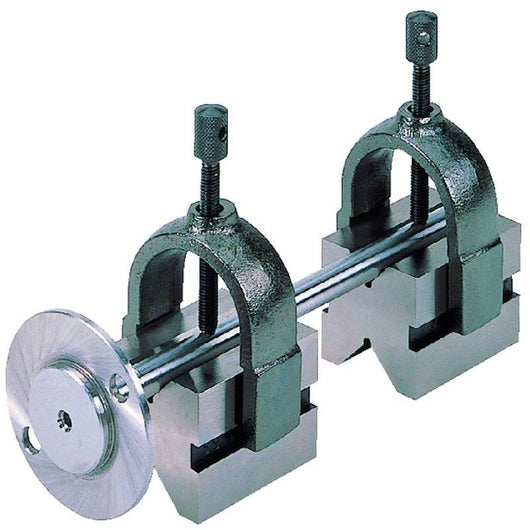

• Designed as a fixture to enable you to check cylindrical precision machined parts.

Key Specifications

Length [mm]: 41

Width: 31.8 mm

Max. receiver for workpiece V-groove 1 Ø: 25

Max. receiver for workpiece V-groove 2 Ø: 16

Height: 31.8 mm

Mass_ 0.65 kg

Hardness_ 58-63 HRC

Parallelism between V-groove and all side surfaces: 6 µm

Perpendicularity between V-grooves and back surface: 9 µm

Difference of the height of the pair: 12 μm

Symmetry of the V-grooves: 6 µm

Delivered: In pairs

Inch-Metric: Metric
