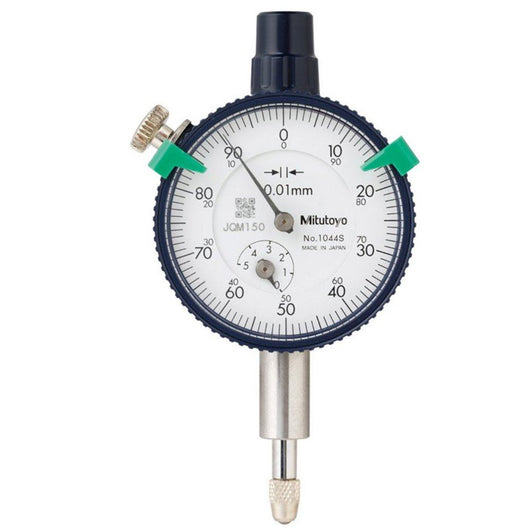

Mitutoyo Compact Dial Indicator 5mm

• A multi-revolution dial indicator suited to general measurement applications. The dual-reading scale aids measurement in both directions
• Small diameter model for applications where space is limited
• Hardened stainless steel plunger for durability
• Rack gear is machine ground for a tighter fit and increased accuracy
• Dial Type - Continuous
• Range - 5mm
• Accuracy - ±13µm
• Graduation - 0.01mm
• Repeatability - 5µm Measuring Force - 1.4N or less
• Bezel clamp, limit markers and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Key Specifications

Graduation - ±0-100
