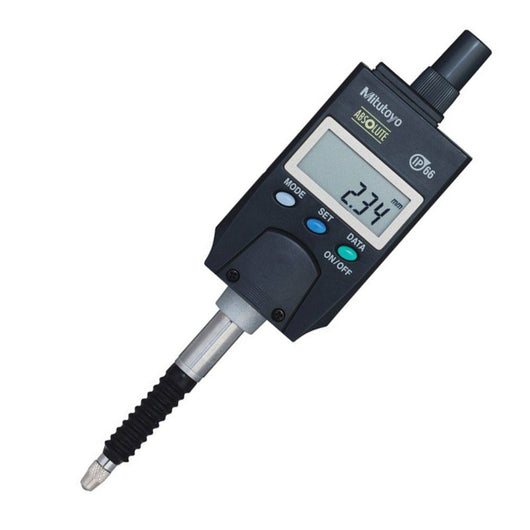

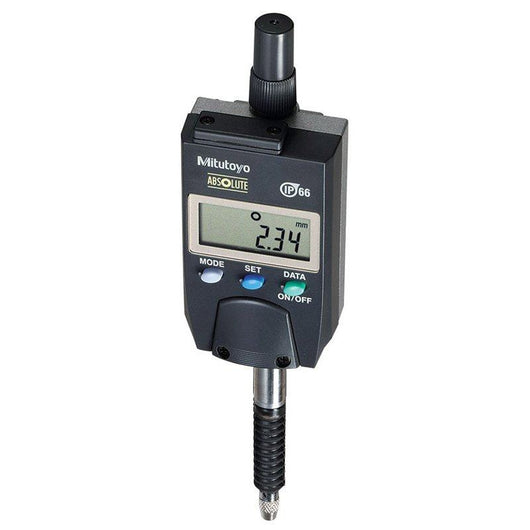

Mitutoyo 12.7mm / 0.5" Absolute Digital Sensor Restore Indicator - MIT-543-571
£224.10 INC VAT
Checkout with
- A slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil
- ABSOLUTE System scale for error free, high-speed measurement
- Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation
- SPC data output - cable not supplied
- Slim type ID-N and Proven ABSOLUTE sensor
- Rated to IP66 water and dust proofing standard and oil resistance improved
- Slim body design is advantageous for multi-point measurements
- Improvement in workability with the LCD readout rotation function
- Built in tolerance judgement function
- Switchable resolution
Key Specifications
- Type - Plunger
- Range - 12.7mm / 0.5"
- Resolution - 0.01mm / .0005"
- Data Output - Yes
- Accuracy - ±0.02mm / ±.0008"
- Display LCD character height - 6.2mm
- Stem diameter - 9.52mm (3/8")
- Measuring Force - 2.5N or less
- Power Supply - SR44
- Functions - Preset, Zeroset, GO/±NG judgement, Max/Min value hold, Runout, Resolution switching, Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: Counting value composition error, Overflow error, Tolerance limit setting error.
Additional Information
Key Specifications
Built in hold/preset function
Functions - Zero-setting, Presetting, Direction switching, Tolerance judgement, Display hold, Data output, Inch/mm readout. Alarm: Low voltage, Counting value composition error, Overflow error, Tolerance limit setting error
Product Specifications
| Specification | Details |
|---|---|
| Accessories | MIT-125317, MIT-238774, MIT-02AZD790G, MIT-02AZE140G, MIT-21EAA194, MIT-21EAA190, MIT-21EAA210, MIT-21AEAA211, MIT-21EAA212, MIT-21EAA423, MIT-21EZA146, MIT-21EZA150 |
| Accuracy e mpe | 0.02mm |
| Accuracy h mpe | 0.02mm |
| Battery life | Approx. 7000 hours |
| Battery type | SR44 |
| Contact point thread | #4-48UNF |
| Data output | Yes |
| Display type | Digital |
| Ip rating | IP 66 |
| Lug back | Lug Back |
| Measurement range | 0-12.7mm (0-0.5") |
| Measurement units | Metric/Imperial |
| Mpn | 543-571 |
| Product series | Series 543 - ABSOLUTE Digimatic Indicators ID-N/B |
| Product sub type | Plunger |
| Repeatability | 0.01mm |
| Resolution | 0.01mm (0.0005") |
| Stem diameter | 9.52mm |
