Dial co-axial Centering Alignment Indicator Metric

We’re sorry, but this product has been discontinued. Please see above for similar or newer versions, or feel free to contact us for further assistance.

Description

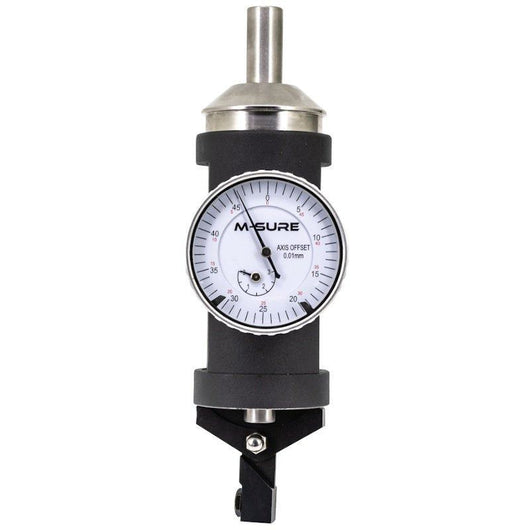

CO-AX Centre Indicator Gauge – Find Internal and External Workpiece Centres with Ease

The CO-AX Centre Indicator Gauge provides a fast, reliable, and simple method of locating the true centre of workpieces, fixtures, and assemblies. Whether measuring internal bores or external diameters, this centring gauge is an essential tool for machinists seeking accuracy and efficiency.

Designed for ease of use, the outer body and indicator dial remain stationary while the centre spindle and feeler rotate – keeping the dial always visible to the operator. A retaining arm is also included, ensuring the dial stays securely positioned for clear readings throughout the process.

Key Benefits:


Locate Workpiece Centres Quickly: Find internal and external centres with minimal setup time.

Constant Dial Visibility: The dial remains stationary and faces the operator at all times for easy reading.

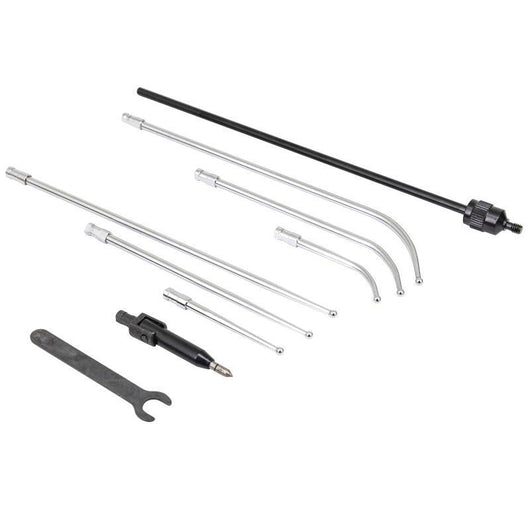

Large Working Area: Supplied with a combination of straight and curved feelers in varying lengths, covering a broad range of diameters.

Metric Dial for Easy Referencing: Clear, metric-scaled dial helps with quick centre-finding.

Flexible Drive Options: Can be rotated either by hand or by machine spindle up to a maximum speed of 500 rpm.

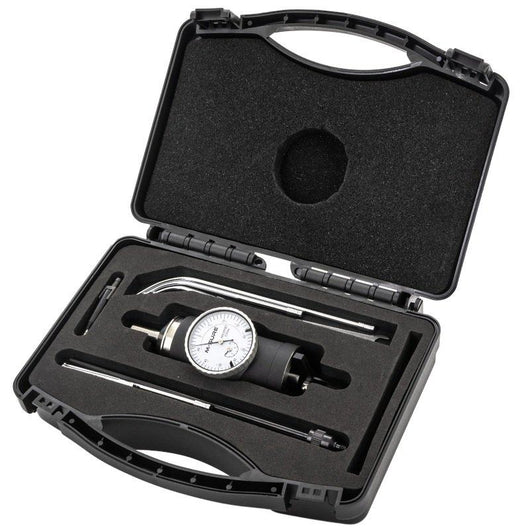

Complete Kit Included: Comes with multiple feelers, a centre locating feeler, spanner, retaining arm, sturdy storage case, and user instructions.

Precision Engineering: Built for long-term use with high-quality materials and construction.

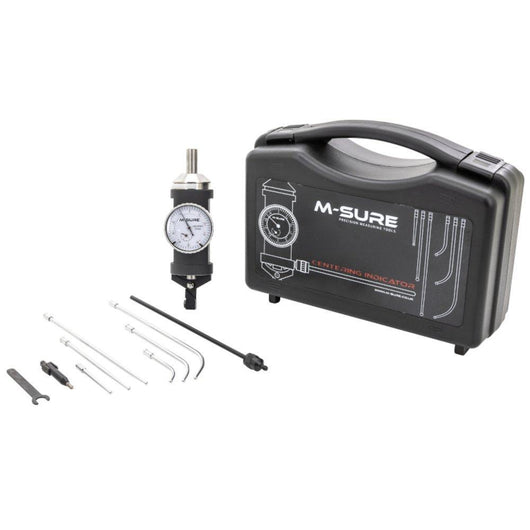

What’s Included?

  • CO-AX Main Body with Metric Indicator Dial
  • 3 x Straight Feelers
  • 3 x Curved Feelers
  • 1 x Centre Locating Feeler
  • Spanner
  • Retaining Arm
  • Protective Storage Case
  • Full Instruction Manual
Specification Details
Dial Diameter 40mm (1 5/8")
Body Length 120mm (4 5/8")
Spindle Length 20mm (12/16")
Spindle Diameter 10mm
Straight Feelers 40mm (1 9/16"), 90mm (3 9/16"), 144mm (5 11/16")
Curved Feelers 42mm (1 11/16"), 92mm (3 5/8"), 142mm (5 5/8")
Operation Speed Hand or motor driven (up to 500 rpm)
Dial Scale Metric



The CO-AX Centre Indicator Gauge simplifies centre finding with exceptional precision, making it perfect for use in workshops, production lines, and machine shops. Whether used manually or driven by machine spindles, it ensures accurate, repeatable results time after time.
