In Stock
SKU: MIT-102-301

0-25mm Mitutoyo 102-301 Metric Outside Micrometer - Ratchet Stop

£76.00 £57.00 SAVE 25%

£68.40 INC VAT

Range 0-25mm
Resolution 0.01mm
Measurement Units Metric
Data Output No
Order in the next [totalHours] hrs %M mins and get it as soon as
Description

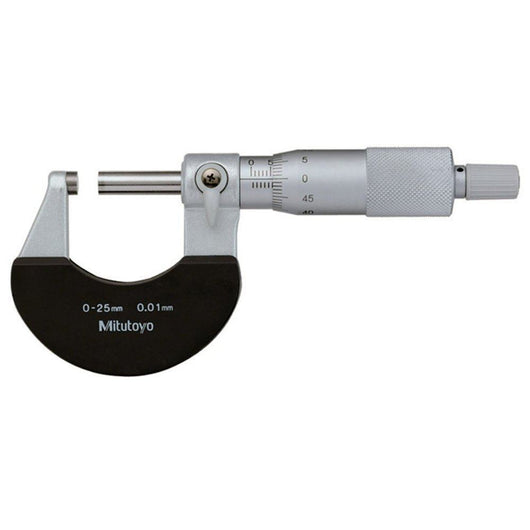

Mitutoyo 102-301 Metric Outside Micrometer with Heat Insulation – 0-25mm Range

The Mitutoyo 102-301 Metric Outside Micrometer is a robust and cost-effective tool, designed for precision measurement in confined and challenging spaces. With its cutaway frame behind the anvil and built-in heat insulation plate, this micrometer maintains outstanding accuracy even during prolonged measuring sessions.

Engineered for reliability and ease of use, it features a ratchet stop mechanism to ensure consistent, repeatable readings. Whether in professional workshops, inspection lines, or educational settings, this micrometer delivers trusted Mitutoyo quality at an excellent value.

Key Benefits:

Ideal for Confined Spaces: The clever cutaway frame behind the anvil makes it easier to measure in tight or hard-to-reach areas.

Enhanced Stability: A heat insulation plate prevents the warmth of your hand from affecting measurements, maintaining precision over longer periods.

Exceptional Accuracy: With a maximum permissible error (J MPE) of ±2µm, this micrometer ensures highly reliable, fine measurements.

Durable, High-Quality Build: The carbide-tipped, micro-lap finished measuring faces offer superior wear resistance for long service life.

Consistent, Repeatable Measurements: The ratchet stop delivers a uniform measuring force, eliminating user error and increasing repeatability.

Easy to Read and Handle: A satin chrome finish on the thimble and sleeve provides excellent visibility, while the lightweight 180g frame ensures comfortable use.

Precision Engineering: Featuring a fine spindle pitch of 0.5mm and a strong spindle lock, this micrometer supports secure and accurate measurements every time.

What’s Included?

  • Mitutoyo 102-301 Metric Outside Micrometer
  • Protective Storage Box
  • Adjusting Key
  • Certificate of Inspection
Specification Details
Model 102-301
Measurement Range 0 - 25mm
Graduation 0.01mm
Max. Permissible Error (J MPE) ±2µm
Flatness 0.6µm
Parallelism 2µm
Type Analogue Micrometer
Scale Finish Satin chrome, ø18mm thimble and sleeve
Measuring Face Carbide-tipped, micro-lap finish
Spindle ø6.35mm with spindle lock, 0.5mm pitch
Measuring Force 5 - 10 N
Remarks Includes Ratchet Stop, Heat Insulation Plate
Mass 180g

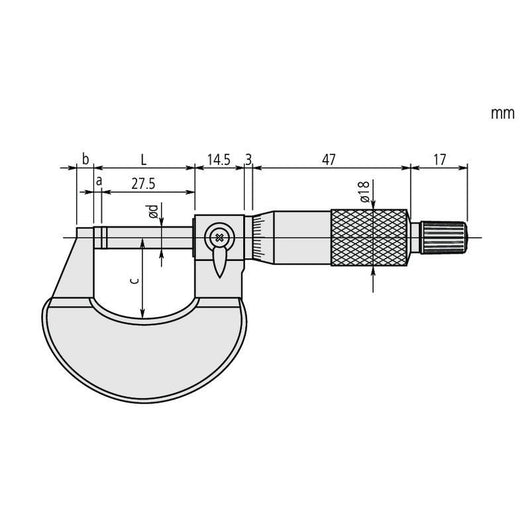

Dimensions: L: 0mm / a: 5mm / b: 26mm / c: 2.5mm



102-911-49_d1.eps

Specs & Data Sheets

Product Specifications

Specification Details
Accuracy +/-0.002mm
Anvil face profile Flat
Data output No
Digital analogue Analogue
Measurement range 0-25mm
Measurement units Metric
Mpn 102-301
Parallelism 0.002mm
Product series Series 102 - Economy Micrometer
Product sub type External
Resolution 0.01mm
Spindle face profile Flat
Waterproof No
Barcode (GTIN): 5055396172003
