0-1/4 inch Range Imperial Dial Indicator Gauge
We’re sorry, but this product has been discontinued. Please see above for similar or newer versions, or feel free to contact us for further assistance.
Description
This product has now been discontinued - please see replacement gauge MS-406-025 and lug back MS-SP-005
- Plunger travel of 1/4 inch, with removable contact tip
- Large Diameter Dial - 1 3/5inch diameter dial with clear 0.001inch graduations
- Adjustable dial face for zero setting with lock and tolerance pointers

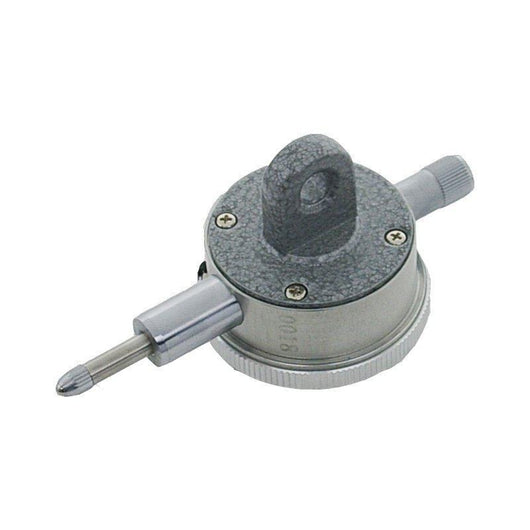

- Two Mounting Options - Mounting via the 3/8inch stem or mounting lug fitted to the back of the gauge with a 1/4inch diameter mounting hole
- Range - 0-1/4 inch
- Dial Diameter - 1 1/2 inch
- Graduation - 0.001 inch
- Stem Diameter - 3/8 inch
- Lug Mounting Diameter - 1/4 inch
- Overall Length - 3 3/10 inch

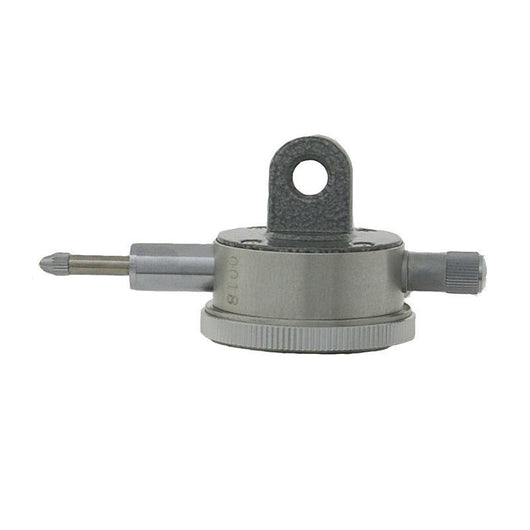

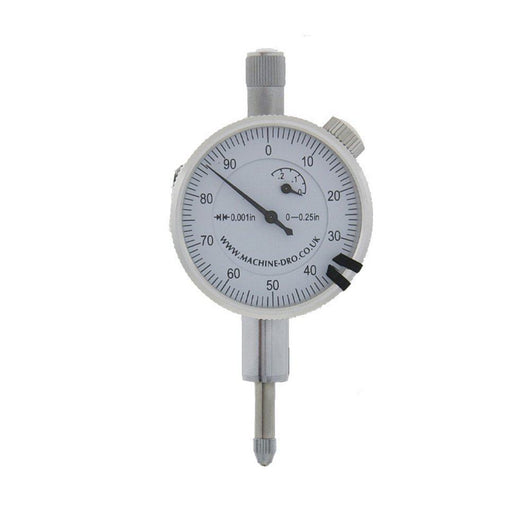

0-1/4 inch Range Imperial Dial Indicator Gauge with 1 1/2 inch diameter dial.
