Back-order
SKU: MIT-174-183E

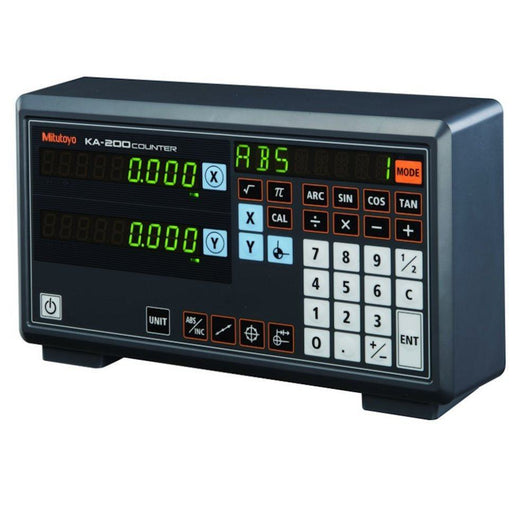

Mitutoyo Linear Scale Counter KA-212 174-183E



£556.80

£668.16 INC VAT

Add to WishlistCompare

Checkout with

apple paygoogle paymasterpaypalvisadiscoverdiners clubmaestrounionpayshopify pay
Description
  • Can be used as a “standard counter” or a “lathe counter” by modifying parameters.
  • Downsizing, weight saving and multiple function have been realized.
  • 2 Axis

The KA-Counter offers you the following benefits:

  • Sub display for easy operation.
  • Text data can be output using the optional USB interface.
  • The optional external interface RS-232C enables connection to a PC and a printer.



Key Specifications

Axes: 2

Mass_ 1.25 kg

Display: 7-segment, 8-digit + sign + 8-character alphabet LED display

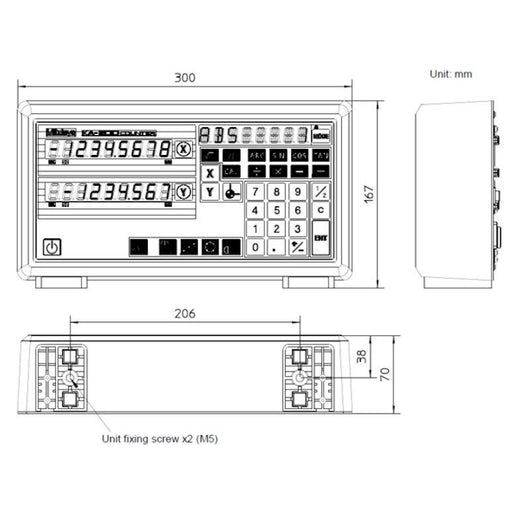

Dimensions (WxDxH): 300 x 70 x 167 mm mm

Resolution: With AT100 Series: 0.05 - 0.0001 mm With AT715: 0.01 - 0.001 mm

Operation temperature: 0°C to 45°C

Macro functions: Rectangular drilling and round milling newly added

Main features: Feed speed display; taper machining function; tool data; multipoint compensation; scale check function; calculation function

Output (optional): RS-232C / USB

ZERO SET: Yes

PRESET: Yes

Diameter display: Yes

1/2 calculation: Yes

mm/inch conversion: Yes

Bolt-hole circle machining_ Yes

Scale reference points: Yes

Linearity error compensation: Yes

Zero approach function (Incremental mode): Yes

Addition of 2-scale data: Yes

Coordinate system switching_ Yes

Error message: Yes

Lower digit blanking out: Yes

Measurement direction setting_ Yes

Memory backup: Yes

Pitch machinig_ Yes

Resolution setting_ Yes

Smoothing_ Yes

Power supply: 100-240V-AC 50/60 Hz



Typical Applications

General Lathes, General milling machines, Inspection, Research equipment
