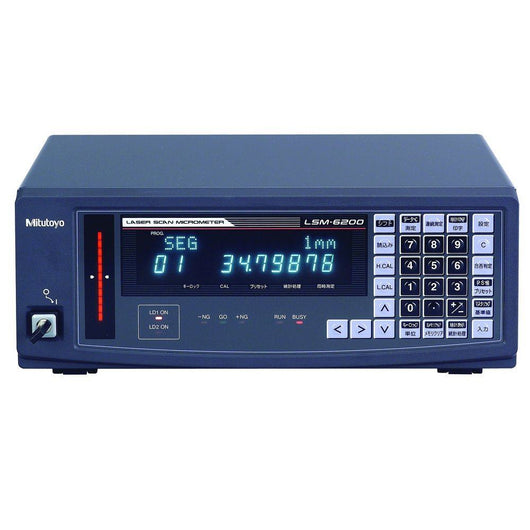

Mitutoyo Laser Scan Micrometer LSM-6200 Laser Display (Metric/Inch) 544-072E
£2,784.00 INC VAT
Checkout with
- With this dual-display design, you can continuously monitor setup values, and also simultaneously display two measurement values.
- You can select either the segment measurement (7 segments max) or edge measurement (1 to 255 edges).
- Includes RS-232C and I/O and analogue interface capabilities.
- Includes statistical calculation and abnormal data eliminating functions.
This dual-display design allows setup values to be continuously monitored with. You can also get simultaneous readout of two measurement values, and segment measurement and edge measurement are both supported. Statistical calculation and abnormal-data elimination functions are provided as well.
Key Specifications
Applicable laser standards: IEC, FDA (544-534), JIS (544-533)
Main display: 16-digit fluorescent tube
Interface units equipped: RS-232C, Analog I/O, Foot Switch
Power supply: 100-240V AC, 40 VA, 50/60Hz
GO/±NG judgement: Yes
OFFSET: Yes
Sample Measurement: Yes
Statistical calculations for DP-1VA: Yes
Data output: Yes
ZERO SET: Yes
PRESET: Yes
Group judgement: Yes
Workpiece position display: Yes
Transparent object measurement: Yes
Automatic measurement: Yes
Abnormal data elimination: Yes
Inch-Metric: Inch/Metric
Product Specifications
| Specification | Details |
|---|
