M_SURE MS-610-010 USB Digital Interface for M_SURE T1 Output
£48.18 INC VAT

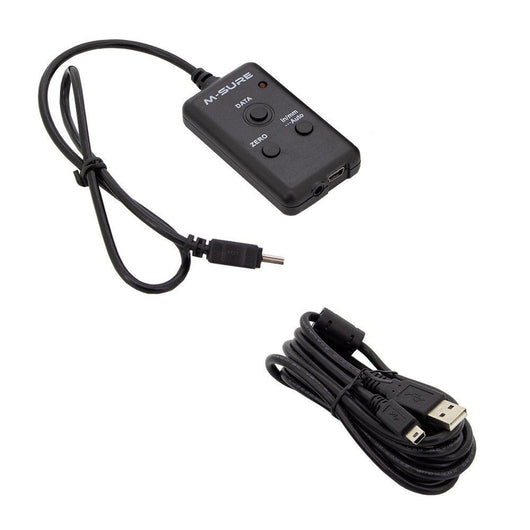

- USB interface for M-SURE gauges fitted with the T1 Data port
- Push button to capture displayed value on the gauge
- Zero button to zero the device at current location and MM/INCH
- A foot operated or remote switch, can also be connected (not included)
- No driver required, interface acts as a human interface device (HID)

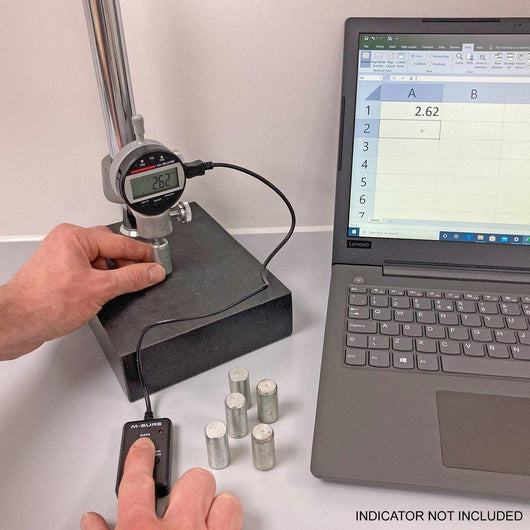

The M-SURE USB interface features a status LED that flashes to indicate the measurement device is connected. Pressing the DATA button on the interface will paste the displayed information directly into any windows based software like excel. Wherever you position the curser the displayed value will be inserted. There is also a carriage return to skip to the next line/cell in preparation for the next value.
The units can be changed using the MM/INCH button, this will also insert the current unit into line/cell. The gauge can also be set to zero using the ZERO button on the interface.
A foot operated or remote switch can be connected to the interface to act as the data button.
Additional Information
Key Specifications
USB Cable Length: 2000mm
Interface to Gauge Cable Length: 400mm
Product Contains
1 x Interface
1 x USB cable (Type A to Mini B)
Typical Applications

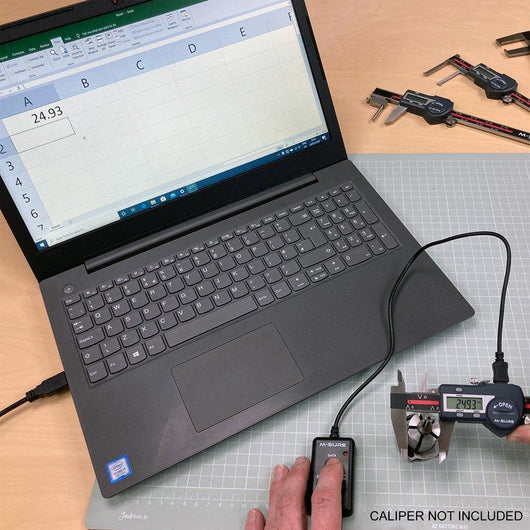

Caliper measurement recording, data capture from digital indicators, part inspection, measurement data acquisition, quality control,
Warranty
A full years return to base warranty supplied with this product
Brand Information
The M-SURE brand of Precision measuring Hand Tools and Digital Scales is a result of over 10 years experience gained in selling a wide range of world leading brands, across an extensive range of industry sectors throughout the world. The experience gained across these years, coupled with extensive research and development has led to the release of the M-SURE range of products, that is not only cost effective, but on a par with other leading manufactures with its sleek design, simple and encompassing functionality, and reassuring quality. Combined with our award-winning, UK based technical support and customer service ethic, the M-SURE range is already proving to be a force to be reckoned with.
