Angle Tilt Sensor/Inclinometer with Remote Display - Pendulum type
£33.05 INC VAT
Checkout with

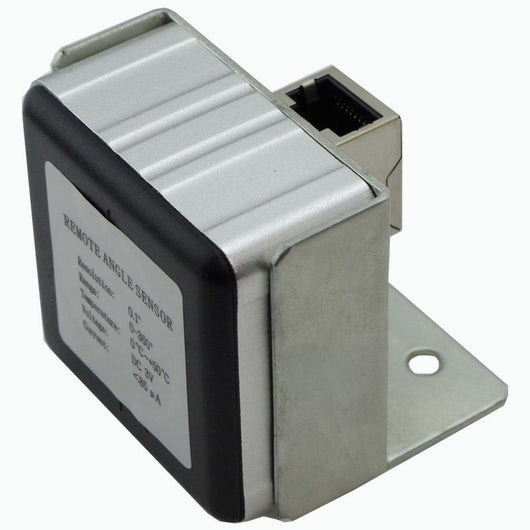

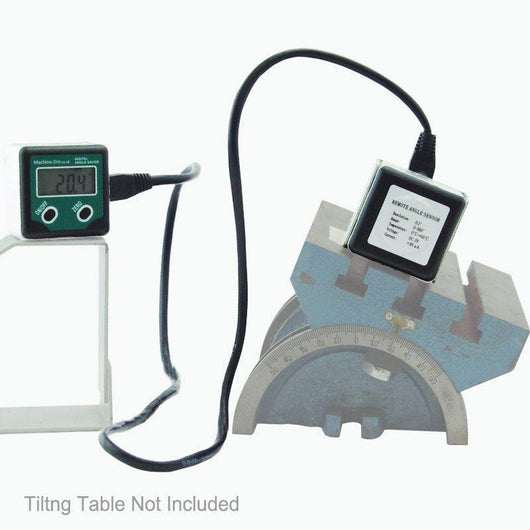

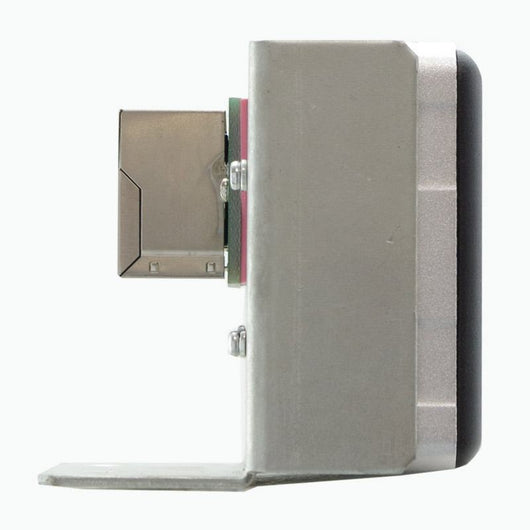

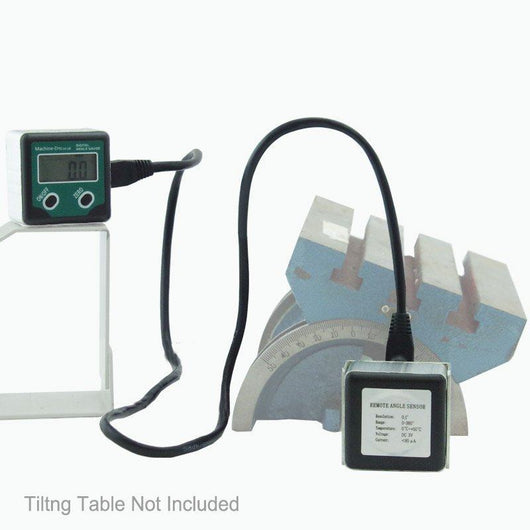

Angle Tilt Sensor/Inclinometer with Remote Display – Pendulum Type
The Angle Tilt Sensor/Inclinometer with Remote Display offers a highly accurate, user-friendly solution for measuring tilt and incline angles across a wide range of applications. Featuring a pendulum-based sensor and a remote LCD display, this tool delivers precise 0.1° resolution, making it ideal for engineering, construction, and equipment alignment tasks.
The sensor uses an internal weighted pendulum to maintain a true vertical reference while the remote display, connected via a detachable Cat 5E Ethernet (RJ45) cable, provides easy-to-read results. The flexible cable setup allows for safe, convenient measurements even in hard-to-reach or hazardous areas.
Key Benefits:
High-Precision Measurement: Achieve reliable readings with 0.1° resolution for precise tilt and angle detection.
Pendulum-Based Accuracy: The internal weighted pendulum maintains a consistent true vertical reference during measurement.

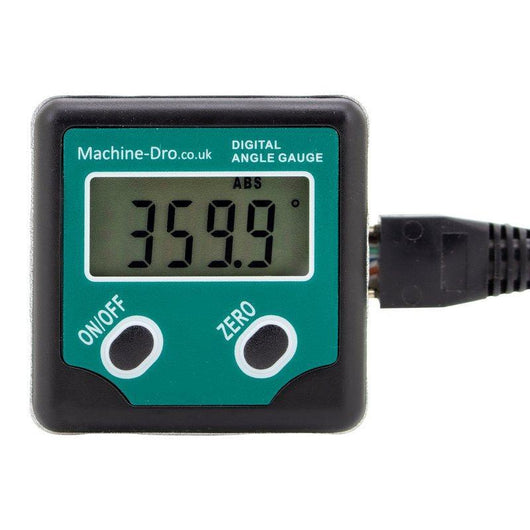

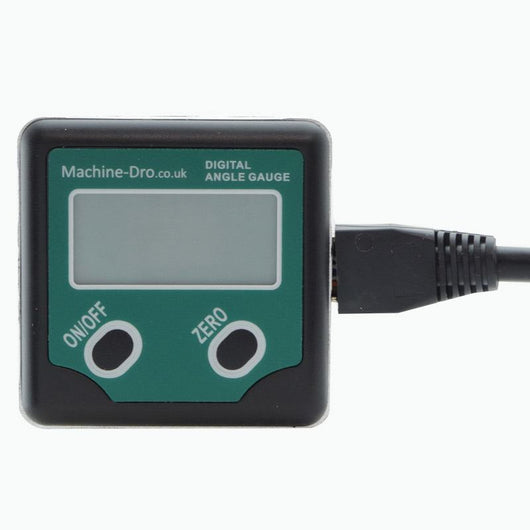

Convenient Remote Display: Features on/off and zero function buttons, allowing you to easily reset the display to zero from any position.
Flexible Setup: Includes a 910mm (36") Cat 5E RJ45 cable, with the option to extend up to 5 metres (screened cable recommended).

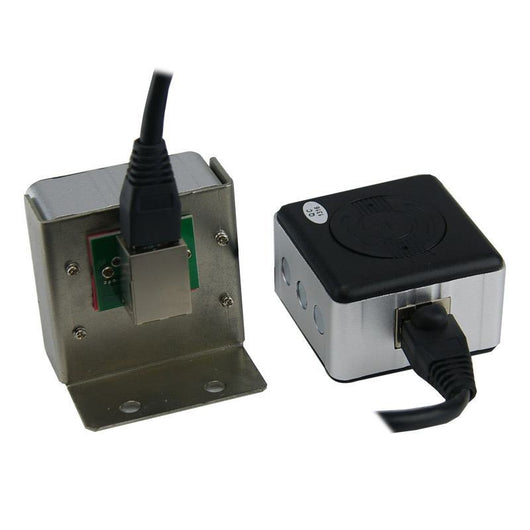

Easy Battery Replacement: Powered by a common CR2032 battery located behind a secure, twist-lock compartment.
Versatile Mounting Options: The sensor comes with a mounting flange and two mounting holes for secure installation.
User-Replaceable Cable: Should longer distances be needed, users can replace or extend the cable with screened Cat 5E Ethernet leads.
Portable and Practical: Lightweight, easy to set up, and ideal for both temporary and semi-permanent installations.
Important Usage Notes:
Do not expose the sensor to harsh vibrations, coolant, or moisture ingress to ensure accurate operation and long-term reliability.
When extending the cable, only use screened RJ45 Cat 5E cables to avoid electrical interference.

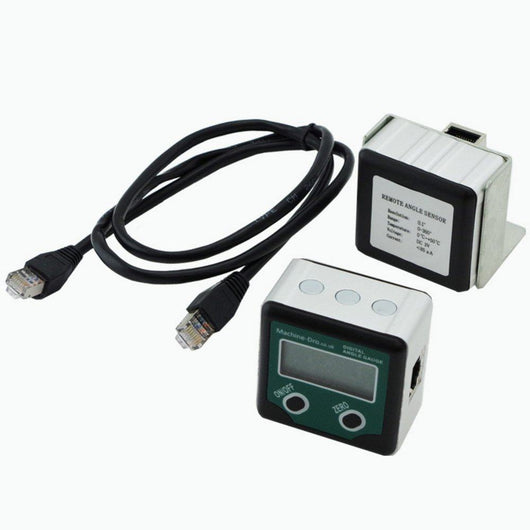

What’s Included?
- Angle Tilt Sensor (Pendulum Type)
- Remote LCD Display
- 910mm (36") Cat 5E RJ45 Cable
- CR2032 Battery (Pre-installed)
| Specification | Details |
|---|---|
| Sensor Type | Pendulum-based Tilt/Inclinometer Sensor |
| Measurement Range | 0° – 360° |
| Resolution | 0.1° |
| Accuracy | High accuracy (pendulum stability) |
| Repeatability | Excellent repeatability |
| Display Features | LCD Screen, On/Off Button, Zero Function |
| Cable Length | 910mm (36"), extendable up to 5 metres |
| Cable Type | Cat 5E RJ45 Ethernet Cable (screened recommended) |
| Battery Type | 3V CR2032 (easy twist-lock compartment) |
| Mounting | Flange with two mounting holes |
| Protection Advice | Avoid vibration, coolant, and moisture exposure |
The Angle Tilt Sensor/Inclinometer with Remote Display is the perfect tool for professionals who need accurate, stable, and remote tilt measurements. Its simple design, flexible connectivity, and dependable performance make it a smart investment for applications such as machinery setup, structural alignment, and complex fabrication tasks.
